SharePoint 2013 Minimal Master Page for lists and libraries

In order to embed a SharePoint 2013 list or document library into another web application via iframe I had to create a custom master page that is very slick, basically a new minimal master page for list and libraries.

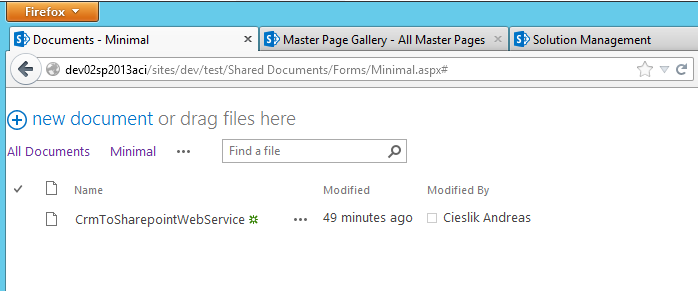

The results looks like this:


The difficult part was to figure out which part (placeholders and other controls) of the original seattle.master which I used as template, I could remove or not.



<%@Master language="C#"%>
<%@ Register Tagprefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %> <%@ Register Tagprefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %> <%@ Import Namespace="Microsoft.SharePoint" %> <%@ Assembly Name="Microsoft.Web.CommandUI, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Import Namespace="Microsoft.SharePoint.ApplicationPages" %>
<%@ Register Tagprefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Register TagPrefix="wssuc" TagName="Welcome" src="~/_controltemplates/15/Welcome.ascx" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN"
    "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
<SharePoint:SPHtmlTag dir="<%$Resources:wss,multipages_direction_dir_value%>" ID="SPHtmlTag" runat="server" >
<head runat="server">
    <meta name="GENERATOR" content="Microsoft SharePoint" />
    <meta http-equiv="Content-type" content="text/html; charset=utf-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=10"/>
    <meta http-equiv="Expires" content="0" />
    <SharePoint:SPPinnedSiteTile runat="server" TileUrl="/_layouts/15/images/SharePointMetroAppTile.png" TileColor="#0072C6" />
    <SharePoint:RobotsMetaTag runat="server"/>
    <SharePoint:PageTitle runat="server">
        <asp:ContentPlaceHolder id="PlaceHolderPageTitle" runat="server">
            <SharePoint:ProjectProperty Property="Title" runat="server" />
        </asp:ContentPlaceHolder>
    </SharePoint:PageTitle>
    <SharePoint:SPShortcutIcon runat="server" IconUrl="/_layouts/15/images/favicon.ico?rev=23" />
    <SharePoint:StartScript runat="server" />
    <SharePoint:CssLink runat="server" Version="15"/>
    <SharePoint:CacheManifestLink runat="server"/>
    <SharePoint:ScriptLink language="javascript" name="core.js" OnDemand="true" runat="server" Localizable="false" />
    <SharePoint:ScriptLink language="javascript" name="menu.js" OnDemand="true" runat="server" Localizable="false" />
    <SharePoint:ScriptLink language="javascript" name="callout.js" OnDemand="true" runat="server" Localizable="false" />
    <SharePoint:ScriptLink language="javascript" name="sharing.js" OnDemand="true" runat="server" Localizable="false" />
    <SharePoint:ScriptLink language="javascript" name="suitelinks.js" OnDemand="true" runat="server" Localizable="false" />
    <SharePoint:CustomJSUrl runat="server" />
    <SharePoint:SoapDiscoveryLink runat="server" />
    <SharePoint:AjaxDelta id="DeltaPlaceHolderAdditionalPageHead" Container="false" runat="server">
        <asp:ContentPlaceHolder id="PlaceHolderAdditionalPageHead" runat="server" />
        <SharePoint:DelegateControl runat="server" ControlId="AdditionalPageHead" AllowMultipleControls="true" />
        <asp:ContentPlaceHolder id="PlaceHolderBodyAreaClass" runat="server" />
    </SharePoint:AjaxDelta>
    <SharePoint:CssRegistration Name="Themable/corev15.css" runat="server" />
</head>
<body>
  <SharePoint:ImageLink runat="server"/>
  <SharePoint:SPNoScript runat="server"/>
  <SharePoint:SPClientIDGenerator runat="server" ServerControlID="DeltaPlaceHolderMain;DeltaPlaceHolderPageTitleInTitleArea;DeltaPlaceHolderUtilityContent" />
  <SharePoint:SharePointForm runat="server" onsubmit="if (typeof(_spFormOnSubmitWrapper) != 'undefined') {return _spFormOnSubmitWrapper();} else {return true;}">
    <script type="text/javascript"> var submitHook = function () { return false; }; theForm._spOldSubmit = theForm.submit; theForm.submit = function () { if (!submitHook()) { this._spOldSubmit(); } }; </script>
    <SharePoint:AjaxDelta id="DeltaSPWebPartManager" runat="server">
        <WebPartPages:SPWebPartManager runat="Server" />
    </SharePoint:AjaxDelta>
    <asp:ScriptManager id="ScriptManager" runat="server" EnablePageMethods="false" EnablePartialRendering="true" EnableScriptGlobalization="false" EnableScriptLocalization="true" />
    <SharePoint:AjaxDelta id="DeltaDelegateControls" runat="server">
        <SharePoint:DelegateControl runat="server" ControlId="GlobalNavigation" />
        <SharePoint:DelegateControl ControlId="GlobalSiteLink3" Scope="Farm" runat="server" Visible="false" />
    </SharePoint:AjaxDelta>
<div id="TurnOnAccessibility" style="display:none" class="s4-notdlg noindex">
    <a id="linkTurnOnAcc" href="#" class="ms-accessible ms-acc-button" onclick="SetIsAccessibilityFeatureEnabled(true);UpdateAccessibilityUI();document.getElementById('linkTurnOffAcc').focus();return false;"><SharePoint:EncodedLiteral runat="server" text="<%$Resources:wss,master_turnonaccessibility%>" EncodeMethod="HtmlEncode"/></a>
</div>
<div id="TurnOffAccessibility" style="display:none" class="s4-notdlg noindex">
    <a id="linkTurnOffAcc" href="#" class="ms-accessible ms-acc-button" onclick="SetIsAccessibilityFeatureEnabled(false);UpdateAccessibilityUI();document.getElementById('linkTurnOnAcc').focus();return false;"><SharePoint:EncodedLiteral runat="server" text="<%$Resources:wss,master_turnoffaccessibility%>" EncodeMethod="HtmlEncode"/></a>
</div>
<div class="s4-notdlg s4-skipribbonshortcut noindex">
    <a href="javascript:;" onclick="document.getElementById('startNavigation').focus();" class="ms-accessible ms-acc-button" accesskey="<%$Resources:wss,skipribbon_accesskey%>" runat="server"><SharePoint:EncodedLiteral runat="server" text="<%$Resources:wss,skipRibbonCommandsLink%>" EncodeMethod="HtmlEncode"/></a>
</div>
<div class="s4-notdlg noindex">
    <a href="javascript:;" onclick="document.getElementById('mainContent').focus();" class="ms-accessible ms-acc-button" runat="server"><SharePoint:EncodedLiteral runat="server" text="<%$Resources:wss,mainContentLink%>" EncodeMethod="HtmlEncode"/></a>
</div>
<div id="TurnOffAnimation" style="display:none;" class="s4-notdlg noindex">
    <a id="linkTurnOffAnimation" href="#" class="ms-accessible ms-acc-button" onclick="ToggleAnimationStatus();return false;"><SharePoint:EncodedLiteral runat="server" text="<%$Resources:wss,master_disableanimation%>" EncodeMethod="HtmlEncode"/></a>
</div>
<div id="TurnOnAnimation" style="display:none;" class="s4-notdlg noindex">
    <a id="linkTurnOnAnimation" href="#" class="ms-accessible ms-acc-button" onclick="ToggleAnimationStatus();return false;"><SharePoint:EncodedLiteral runat="server" text="<%$Resources:wss,master_enableanimation%>" EncodeMethod="HtmlEncode"/></a>
</div>
<a id="HiddenAnchor" href="javascript:;" style="display:none;"></a>
        <div id="ms-hcTest"></div>
        <div id="s4-ribbonrow" style="display:none">
        <div id="globalNavBox" class="noindex">
<div id="ribbonBox">
    <div id="s4-ribboncont">
        <SharePoint:AjaxDelta id="DeltaSPRibbon" BlockElement="true" runat="server">
            <SharePoint:DelegateControl runat="server" ID="GlobalDelegate0" ControlId="GlobalSiteLink0" />
            <SharePoint:SPRibbon
                runat="server"
                PlaceholderElementId="RibbonContainer"
                CssFile="" >
                <SharePoint:SPRibbonPeripheralContent
                    runat="server"
                    CssClass="ms-core-defaultFont ms-dialogHidden"
                    Location="TabRowLeft">
                </SharePoint:SPRibbonPeripheralContent>
            </SharePoint:SPRibbon>
        </SharePoint:AjaxDelta>
    </div>
    <SharePoint:AjaxDelta id="DeltaSPNavigation" runat="server">
        <asp:ContentPlaceHolder ID="SPNavigation" runat="server">
            <SharePoint:DelegateControl runat="server" ControlId="PublishingConsole" Id="PublishingConsoleDelegate" />
        </asp:ContentPlaceHolder>
    </SharePoint:AjaxDelta>
</div>
<SharePoint:AjaxDelta id="DeltaWebPartAdderUpdatePanelContainer" BlockElement="true" CssClass="ms-core-webpartadder" runat="server">
  <div id="WebPartAdderUpdatePanelContainer">
    <asp:UpdatePanel
        ID="WebPartAdderUpdatePanel"
        UpdateMode="Conditional"
        ChildrenAsTriggers="false"
        runat="server">
      <ContentTemplate>
        <WebPartPages:WebPartAdder ID="WebPartAdder" runat="server" />
        </ContentTemplate>
      <Triggers>
        <asp:PostBackTrigger ControlID="WebPartAdder" />
      </Triggers>
    </asp:UpdatePanel>
  </div>
</SharePoint:AjaxDelta>
        </div>
        </div>
        <div id="s4-workspace" class="ms-core-overlay">
        <div id="s4-bodyContainer">
        <SharePoint:AjaxDelta BlockElement="true" id="DeltaPlaceHolderPageDescription" CssClass="ms-displayInlineBlock ms-normalWrap" runat="server">
    <a href="javascript:;" id="ms-pageDescriptionDiv" style="display:none;">
      <span id="ms-pageDescriptionImage">&#160;</span>
    </a>
    <span class="ms-accessible" id="ms-pageDescription">
      <asp:ContentPlaceHolder id="PlaceHolderPageDescription" runat="server" />
    </span>
    <SharePoint:ScriptBlock runat="server">
      _spBodyOnLoadFunctionNames.push("setupPageDescriptionCallout");
    </SharePoint:ScriptBlock>
  </SharePoint:AjaxDelta>
        <div id="contentRow" style="padding-top: 0px">
  <SharePoint:AjaxDelta id="DeltaPlaceHolderLeftNavBar" BlockElement="true" CssClass="ms-core-navigation" role="navigation" runat="server">
    <asp:ContentPlaceHolder id="PlaceHolderLeftNavBar" runat="server">
                <a id="startNavigation" name="startNavigation" tabIndex="-1"></a>
                <asp:ContentPlaceHolder id="PlaceHolderLeftNavBarTop" runat="server" />
                <asp:ContentPlaceHolder id="PlaceHolderQuickLaunchTop" runat="server" />
                <asp:ContentPlaceHolder id="PlaceHolderLeftNavBarDataSource" runat="server" />
                <asp:ContentPlaceHolder id="PlaceHolderCalendarNavigator" runat="server" />
                <asp:ContentPlaceHolder id="PlaceHolderLeftActions" runat="server" />
    </asp:ContentPlaceHolder>
  </SharePoint:AjaxDelta>
<div id="contentBox" aria-live="polite" aria-relevant="all" style="margin-left:1px;min-width:1px">
  <div id="notificationArea" class="ms-notif-box"></div>
    <SharePoint:AjaxDelta id="DeltaPageStatusBar" BlockElement="true" runat="server">
        <div id="pageStatusBar"></div>
    </SharePoint:AjaxDelta>
    <SharePoint:AjaxDelta id="DeltaPlaceHolderMain" BlockElement="true" IsMainContent="true" runat="server">
        <a id="mainContent" name="mainContent" tabindex="-1"></a>
        <asp:ContentPlaceHolder id="PlaceHolderMain" runat="server" />
    </SharePoint:AjaxDelta>
</div>
<SharePoint:AjaxDelta id="DeltaFormDigest" BlockElement="true" runat="server">
    <asp:ContentPlaceHolder id="PlaceHolderFormDigest" runat="server">
        <SharePoint:FormDigest runat="server"/>
    </asp:ContentPlaceHolder>
</SharePoint:AjaxDelta>
<asp:ContentPlaceHolder id="PlaceHolderSiteName" runat="server" Visible="false" />
<asp:ContentPlaceHolder id="PlaceHolderHorizontalNav" runat="server" Visible="false" />
<asp:ContentPlaceHolder id="PlaceHolderPageImage" runat="server" Visible="false" />
<asp:ContentPlaceHolder id="PlaceHolderTitleLeftBorder" runat="server" Visible="false" />
<asp:ContentPlaceHolder id="PlaceHolderMiniConsole" runat="server" Visible="false" />
<asp:ContentPlaceHolder id="PlaceHolderTitleRightMargin" runat="server" Visible="false" />
<asp:ContentPlaceHolder id="PlaceHolderTitleAreaSeparator" runat="server" Visible="false" />
<asp:ContentPlaceHolder id="PlaceHolderNavSpacer" runat="server" Visible="false" />
<asp:ContentPlaceHolder id="PlaceHolderLeftNavBarBorder" runat="server" Visible="false" />
<asp:ContentPlaceHolder id="PlaceHolderBodyLeftBorder" runat="server" Visible="false" />
<asp:ContentPlaceHolder id="PlaceHolderBodyRightMargin" runat="server" Visible="false" />
<asp:ContentPlaceHolder id="PlaceHolderTitleAreaClass" runat="server" Visible="false" />
<asp:ContentPlaceHolder id="PlaceHolderGlobalNavigation" runat="server" Visible="false" />
<asp:ContentPlaceHolder id="PlaceHolderGlobalNavigationSiteMap" runat="server" Visible="false" />
<asp:ContentPlaceHolder id="WSSDesignConsole" runat="server" Visible="false" />
        </div>
        </div>
        </div>
</SharePoint:SharePointForm>
    <SharePoint:AjaxDelta id="DeltaPlaceHolderUtilityContent" runat="server">
        <asp:ContentPlaceHolder id="PlaceHolderUtilityContent" runat="server"/>
    </SharePoint:AjaxDelta>
    <SharePoint:ScriptBlock runat="server">
        var g_Workspace = "s4-workspace";
    </SharePoint:ScriptBlock>
</body>
</SharePoint:SPHtmlTag>
Labels:

Comments

  1. Oisin G.June 11, 2013 at 4:31 PM

    Or, you could just append ?IsDlg=1 to the end of your lists pages and SharePoint will display a minimal version for you. No need for master page hacks ;)
